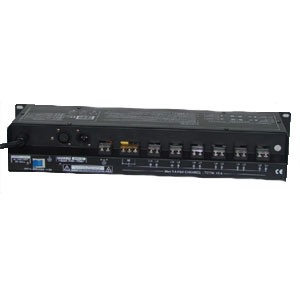

DMX512/1990 signal input
12 the power switch circuit
DMX control characteristics of the loop: 0-126 = OFF, 127-255 = ON
Power switch device: the bidirectional thyristor
Each circuit working status indicator light
Maximum load 5 a, every road no.12 total load is not more than 16 a
Insurance tube fuse overcurrent protection
The built-in 8 program, can choose speed
DMX signal input connector: XLR - D3M
DMX signal is directly output connector: XLR - D3F
19 "standard rack installation specifications
Power input: AC230V 50 hz/AC120V 60 hz
Dimension: 480 mmx146mmx74mm
Weight: 4.0 KG
